CMRR
|
≥ 100dB, with AC Filter
|
Calibrating voltage
|
1mV± 3%
|
Input circuit
|
Floating
|
Voltage tolerance
|
± 500mV
|
Input circuit current
|
≤ 0.1µ A
|
Time constant
|
> 3.2s
|
Resolution
|
12bit/1000Hz
|
Frequent response
|
0.05Hz~150Hz
|
Operation mode
|
Manual/Auto
|
Noise level
|
≤ 15µ Vp-p
|
Filter
|
AC. EMG Filter
|
Threshold
|
≤ 20µ V
|
Drift filter
|
Anti-Drift System
|
Paper speed
|
12.5, 25, 50mm/s (± 3%)
|
Input Impedance
|
> 50MΩ
|
Sensitivity
|
5 ,10 ,20mm/mV
|
Patient current leakage
|
< 10µ A
|
Recorder
|
High resolution thermal printer
|
Specification of fuse
|
T1.6A 250V Ø5×20
|
Battery
|
Built-in rechargeable Li-ion battery 11.1V(2200mAh)
|
Recording paper
|
Thermal recording paper
|
Package
|
256mm*204mm*66mm
|
Medical and health

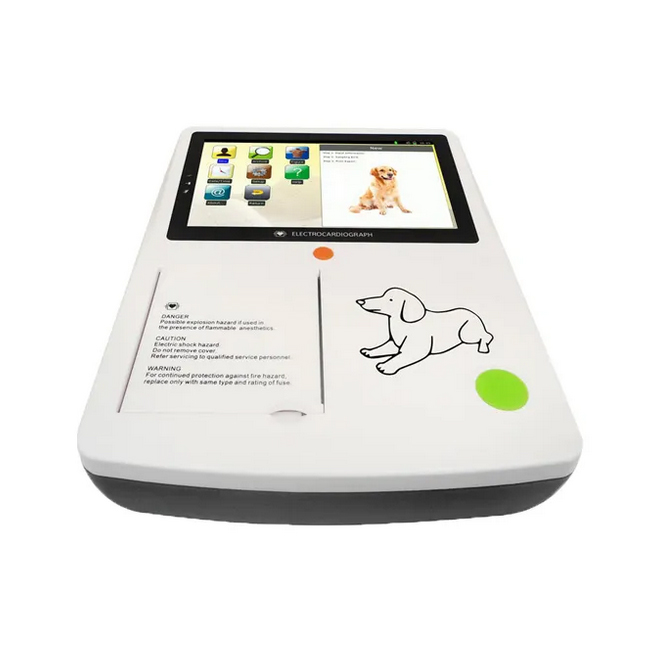

3 channels ecg veterinary electrocardiography ekg machines with interpretation print
Functional Characteristics
1. 7/12 lead ECG synchronous sampling system.
2. Thermalprinter with 80mm print paper, synchronization print.
3. 7’color touch-screen,touch operation.
4. Automatic measurement, calculation, analysis, waveform freezing.
5. Support USB flash disk & SD memory.
6. Data transmitting to PC via USB.
7. Patient’sinformation can beinput.
8. Historicaldata can bereviewedandprinted.
9. Built-in rechargeable li-ion battery, AC/DC power conversion
10. Sleep mode to save energy and extend TFT screen life.
11. Support USB Keyboard/Mouse.
12. Lead off & lack off paper detection function.
13. 7level printing thick can be chosen.
14. Adapt to 110-230V,50/60Hz AC power supply.
