PL-3018V

Technical Specifications:

● The instrument is microcomputer-controlled and equipped with a Digital Scan Converter (DSC), incorporating technologies such as Digital Beam Forming (DBF), Real-Time Dynamic Aperture Imaging (RDA), Real-Time Dynamic Apodization (DRA), Real-Time Dynamic Receive Focusing (DRF), Digital Dynamic Frequency Scanning (DFS), and Frame Correlation. These technologies ensure the device delivers clear, stable, and high-resolution imaging.
● Features five display modes: B, B+B, B+M, M, and 4B. Supports real-time imaging, freeze, zoom, vertical/horizontal flip, image storage/retrieval, movie playback, and pseudocolor processing. Includes annotation functions for hospital name, patient name, age, and gender, as well as measurement functions for distance, perimeter, area, volume, heart rate, gestational age, and histograms. Offers 256-level grayscale imaging.
● Powered by a combination of an AC adapter and a built-in rechargeable lithium-ion battery, with two charging modes and a dedicated power-saving mode to extend battery life.
● Adopts a 5-inch TFT-LCD display, programmable FPGA devices, and Surface Mount Technology (SMT), resulting in a compact and lightweight design.

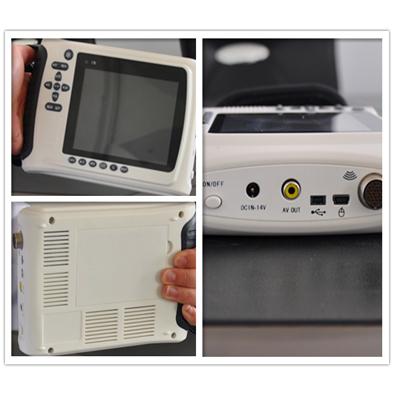

● Supports PAL-D video output and includes a mouse interface.
● Operated via a touch-sensitive silicone keyboard and mouse for fast, convenient, and flexible control.

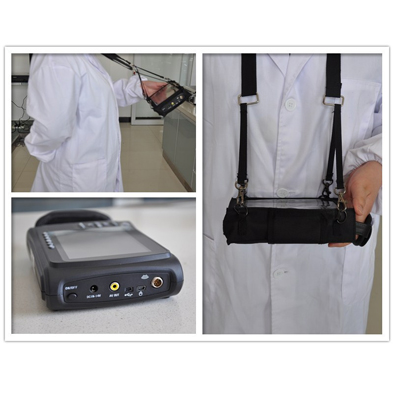

● Designed with an injection-molded handheld housing, making it ideal for on-site diagnostics.

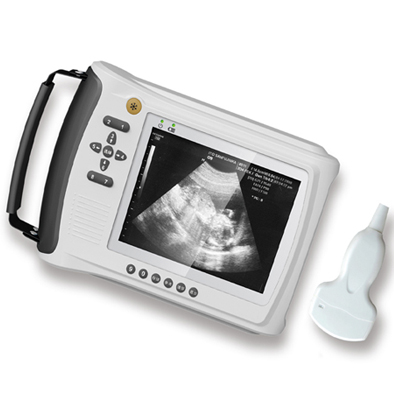

● Consists of three main components: main unit, transducer (probe), and adapter. Standard configuration includes a C1-11/50R/3.5MHz convex array probe; optional probes include a 6.5MHz animal rectal probe, C1-12/20R/5.0MHz micro-convex probe, and L1-5/7.5MHz high-frequency linear array probe.
